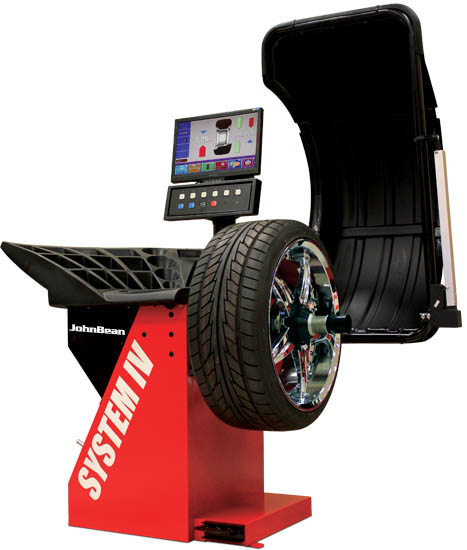

VPI System IV

The VPI System IV wheel balancer offers the industry’s best technology as well as several key productivity-enhancing features, including a Quick-Nut or Power Clamp configuration, semi-automatic calculation of wheel distance, diameter, and width, and a flatscreen LCD color monitor.

John Bean’s VPI Series Wheel Balancers will enable you to:

• Save time
• Reduce come-backs
• Handle a wide range of high-performance/aftermarket wheels
• Perform single-spin balances - every time
• Make More Money!



Click on one of the section titles to learn more about the VPI System IV Wheel Balancer.

---

Semi-Automatic Parameter Entry

• Use the inner auto-assist data input arm to quickly and accurately capture wheel distance and diameter, and also to place tape weights behind spokes or on the inside edge of the wheel
• Capture wheel width dimensions with the outer auto-assist data input arm

Inner Auto-Assist Data Input Arm Measures Wheel Distance and Diameter	Outer Auto-Assist Data Input Arm Measures Wheel Width	Inner Auto-Assist Data Input Arm also places tape weights behind spokes or on inner edge of wheel

Back To Features List

---

Power Clamp

• Automatically locks the wheel and tire assembly in place at the appropriate pressure (EEWB516PD Only)

Back To Features List

---

LCD Monitor and GUI

• Easily navigate the most advanced measurements with our easy-to-use Graphic User Interface (GUI)
• Communicate results and suggested repairs to your customers

Back To Features List

---

Optional WeightMiser™ Software

• Helps reduce weights used while maintaining acceptable balance and ride quality. The operator has the option of using a smaller (less costly) weight with a touch of a button

Back To Features List

---

Available Configurations

Part Number	Description
EEWB516D	VPI System IV Wheel Balancer with Quick-Nut
EEWB516PD	VPI System IV Wheel Balancer with Power Clamp

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Maximum Wheel & Tire Assembly Weight	154 lbs.
Maximum Wheel & Tire Assembly Diameter	44"
Maximum Wheel & Tire Assembly Width	21"
Wheel Diameter Range	8" - 30"
Balancer Shaft Diameter	40mm
Balancing Accuracy	0.035oz
Measuring Speed	200 RPM
Weight Storage Pockets	17
Data Entry (Wheel Distance, Diameter, & Width)	Automatic via Auto-Assist Data Input Arms
Display	Elevated LCD Flat Screen Color Monitor
Dimensions (DxWxH)	62"x60"x71"
Shipping Weight	385 lbs
Power Requirements	230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
EAM0005D40A	Calibration Weight
EAA0247G21A	Wheel Width Gauge
00058839000	Weight Pliers

Optional Accessories

Because wheel designs are unique and ever-changing, standardized cone packages lack the flexibility to meet the mounting demands of today’s wheels. Putting our customer’s needs first, John Bean offers a selection of cone packages capable of servicing a wide range of wheel and tire assemblies.

Part Number	Description
EAK0221J31A	7 Cone Kit (1.7" - 6.3")
EAK0221J60A	4 Cone Kit (2.1" - 5.2")
EAK0221J50A	1 Ton Plate Package
EAK0221J51A	CenTor System (For SUV and Light Truck)
EAK0221J52A	Light Truck Package
EAK0221J53A	Gold Package 1
EAK0221J54A	Gold Package 2
EAK0221J55A	Platinum Package 1
EAK0221J56A	Platinum Package 2
