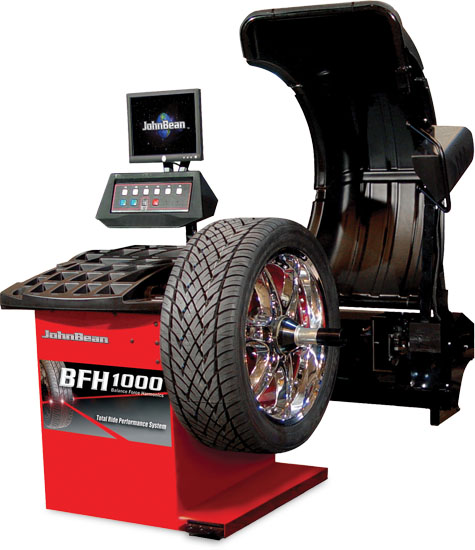

BFH 1000

The BFH 1000 is the most advanced diagnostic wheel balancing system in the industry. Designed for power users and high-volume shops, the John Bean BFH 1000 wheel balancer boasts one of the fastest floor-to-floor time in the industry, and also provides advanced diagnostics, such as Radial Runout, Wheel-Only Runout, Tread Depth Laser Detection and much more.

John Bean’s BFH Series Wheel Balancers will enable you to:

• Perform lightning-fast balances in a single spin - every time.
• Handle a wide range of aftermarket/high-performance wheels.
• Improve safety by identifying customers tread depth and drivability issues.
• Make More Money!



Click on one of the section titles to learn more about the BFH 1000 Wheel Balancer.

---

Mount The Wheel With Our Patented Power Clamp

• Select the proper mounting cone for the wheel
• Place the wheel on the mounting shaft
• Depress the locking foot pedal
• Center and clamp the wheel automatically with consistent clamping pressure using the patented Power Clamp for unmatched repeatability
• Lower the wheel guard

Back To Features List

---

Collect Measurements in Six Seconds!

• Virtual Plane Imaging (VPI) measurements and laser imaging captures the profile of the wheel and compares the information to specifications
• In six seconds, the color display shows the location of any imbalances and identifies the optimal tape or clip-on weight location

Back To Features List

---

Radial Runout

• Determine whether the wheel and/or tire are in or out of tolerance
• Results indicate the need for tire-to-wheel matching to help improve ride quality

Back To Features List

---

Wheel-Only Runout

• Perform runout at the bead seat for diagnosis of wheel-only problems

Back To Features List

---

Automatic Spoke Detection

• Spokes are counted so that weights can be placed behind them as needed

Back To Features List

---

Tread Depth Laser Detection

• A pass/fail graphic displays whether tread depth is above or below preset height

Back To Features List

---

Match-Mounting

To make the most of your Wheel Balancer investment, pair the BFh 1000 with one of John Bean’s High-Performance Tire Changers. The BFH 1000 uses touchless, laser imaging technology to determine the optimal match for each tire and wheel assembly. The Quadriga ATC 1000 then quickly indexes the tire and wheel. Eliminate customer comebacks by reducing vibration due to non-uniformity issues!

Back To Features List

---

The Benefits of Optional Opti-Line™ Software

• Helps to improve ride performance and pull problems that cannot be fixed by wheel alignment alone
• Eliminates multiple tire rotations to reposition tires and reduces times required for road tests significantly
• Handles any kind of wheel, including wheels with directional tires
• Addresses pull or vibration-related issues by suggesting the optimal location for each wheel in the set based on tire conicity (pulls) or radial runout (vibration)
• Enhances straight-ahead steering stability of the vehicle

Back To Features List

---

Weight Wizard*

• Tracks weights used over time by color type and weight
• Records weights used on every job automatically
• Tailors weight purchases to save money by buying only what you need

Back To Features List

---

Optional WeightMiser™ Software

• Recommends lower weight amounts whenever possible to drive cost reduction
• Shows productivity benefits over time in dollars saved and also the amount of weight savings as percentage of total weight used

Back To Features List

---

Available Configurations

Part Number	Description
EEWB519B	BFH 1000
EEWB519BP	BFH 1000 (Includes Printer Kit)

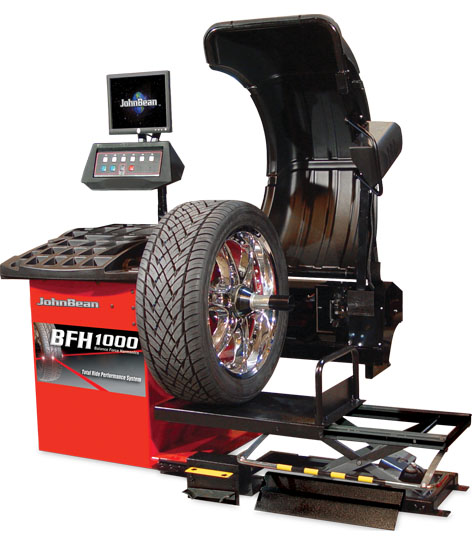

EEWB519BW	BFH 1000 (Includes Wheel Lift)

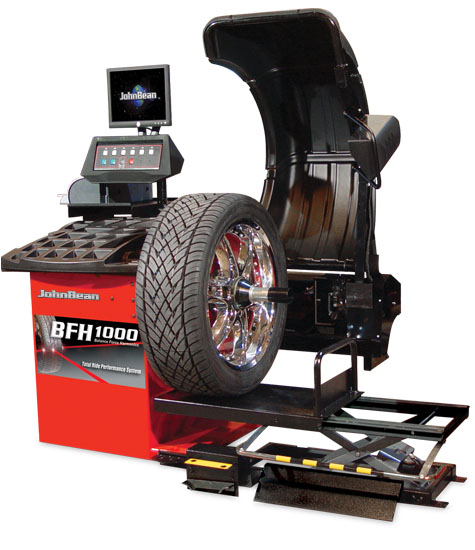

EEWB519BPW	BFH 1000 (Includes Priter Kit & Wheel Lift)
EEWB519S	BFH 1000 (Includes Opti-Line)
EEWB519SP	BFH 1000 (Includes Opti-Line & Printer Kit)
EEWB519SW	BFH 1000 (Includes Opti-Line & Wheel Lift)
EEWB519SPW	BFH 1000 (Includes Opti-Line, Priter Kit & Wheel Lift)

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Maximum Wheel & Tire Assembly Weight	154 lbs.
Maximum Wheel & Tire Assembly Diameter	44"
Maximum Wheel & Tire Assembly Width	21"
Wheel Diameter Range	8" - 30"
Balancer Shaft Diameter	40mm
Balancing Accuracy	0.05oz
Scanner Accuracy	0.0039"
Measuring Speed	200 RPM
Weight Storage Pockets	28
Data Entry (Wheel Distance, Diameter, & Width)	Automatic, Non-Touch
Display	Elevated LCD Flat Screen Color Monitor
Dimensions (DxWxH)	64"x64"x64"
Shipping Weight	550 lbs
Power Requirements	230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
EAA0307G54A	Power Clamp Nut Kit
EAM0005D40A	Calibration Weight
EAA0247G21A	Wheel Width Gauge
00058839000	Weight Pliers

Optional Accessories

Because wheel designs are unique and ever-changing, standardized cone packages lack the flexibility to meet the mounting demands of today’s wheels. Putting our customer’s needs first, John Bean offers a selection of cone packages capable of servicing a wide range of wheel and tire assemblies.

Part Number	Description
EAK0221J31A	7 Cone Kit (1.7" - 6.3")
EAK0221J60A	4 Cone Kit (2.1" - 5.2")

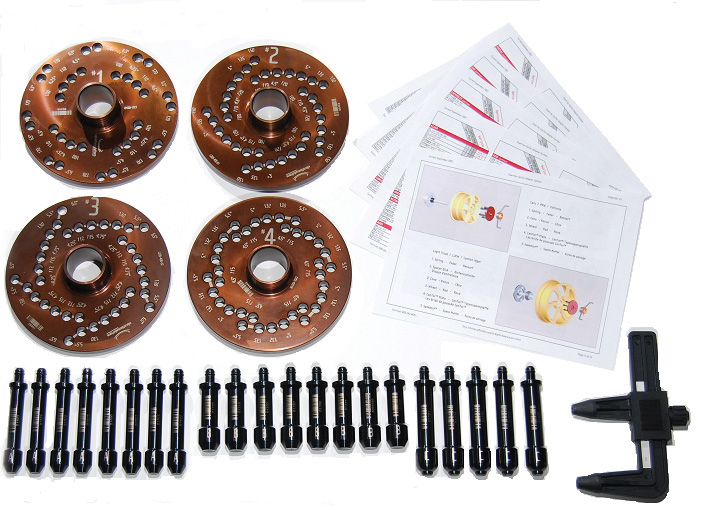

EAK0221J50A	1 Ton Plate Package

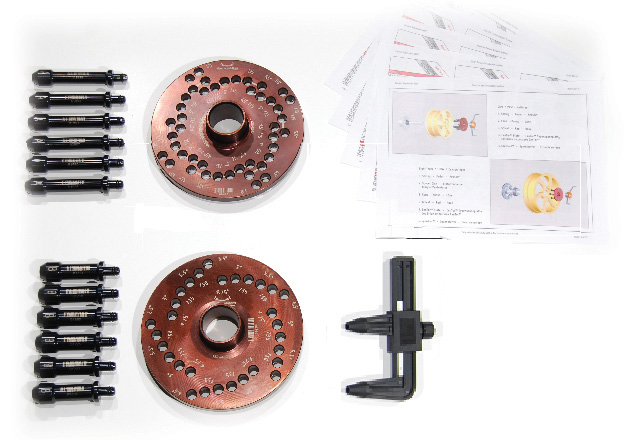

EAK0221J51A	CenTor System (For SUV and Light Truck)

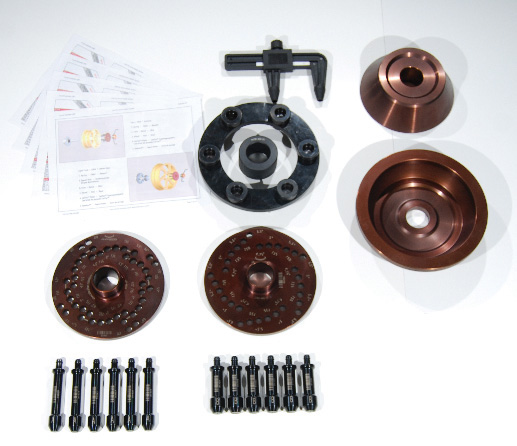

EAK0221J52A	Light Truck Package

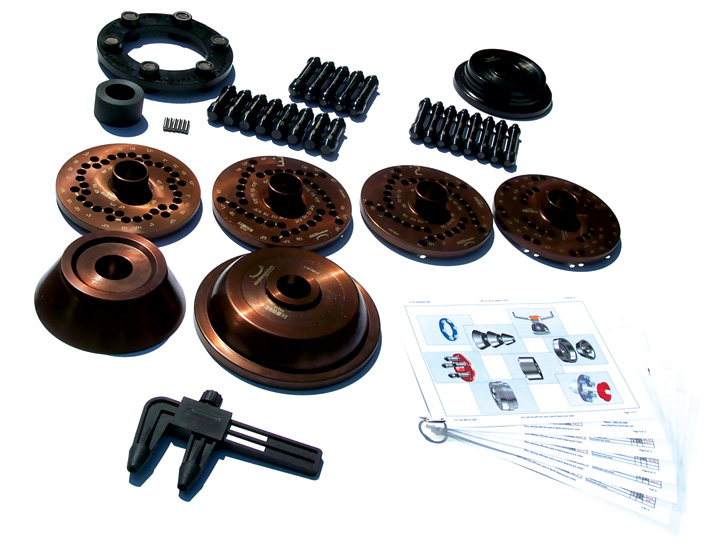

EAK0221J53A	Gold Package 1

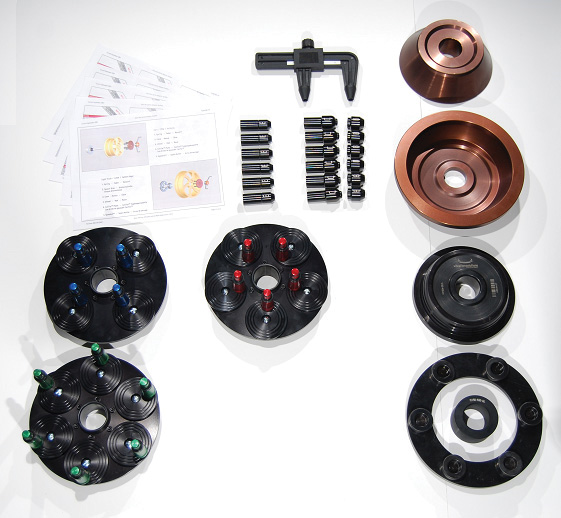

EAK0221J54A	Gold Package 2

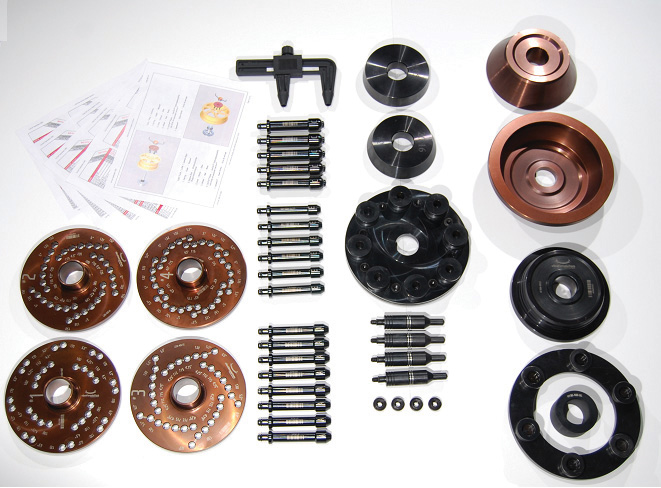

EAK0221J55A	Platinum Package 1

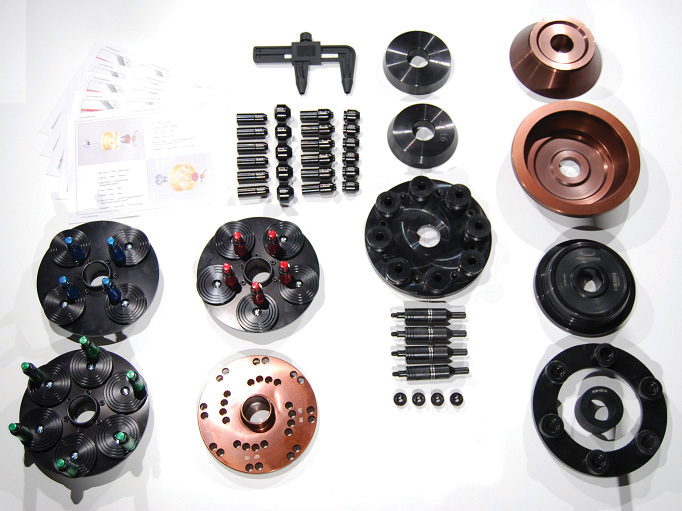

EAK0221J56A	Platinum Package 2
