Visualiner 3D² X-CEL

The V3D² X-CEL imaging alignment system leverages patented imaging technology to provide accurate, real-time measurements that reduce setup and measurement times and generate serious productivity benefits. This proven technology is matched with easy-to-use software that will have your technicians getting readings in a matter of minutes. (Shown with Optional Variable-Height Camera Support)

The V3D X-CEL series will enable you to:

• Make more of your technicians alignment experts
• Generate more alignment business
• Eliminate comebacks
• Make More Money!

Click on one of the section titles to learn more about
the V3D² X-CEL Wheel Alignment System.



---

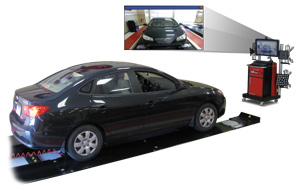

Optional Drive-On Camera Aid

(EAK0289J91A) The Drive-On Camera Aid eliminates the need for assistance with positioning the vehicle on the lift.

Back To Features List

---

Optional VIN Scanner

(EAK0289J86A) The VIN Scanner allows the technician to scan the Vehicle Identification Number and automatically input it into the aligner, saving time and eliminating the possibility of operator error.

Back To Features List

---

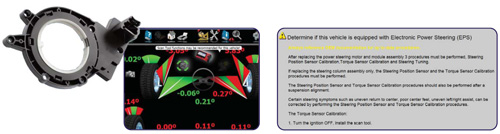

EZ-Link™* Steering Angle Sensor (SAS) Reset

EZ-Link™ software alerts the technician of OEM service and maintenance procedures related to Electronic Stability Control and Electric Power Steering systems.

OEM instructions guide the technician through the process of resetting the steering angle sensors along with other sensors as required. EZ-Link™ includes manual as well as electronic resets.

Back To Features List

---

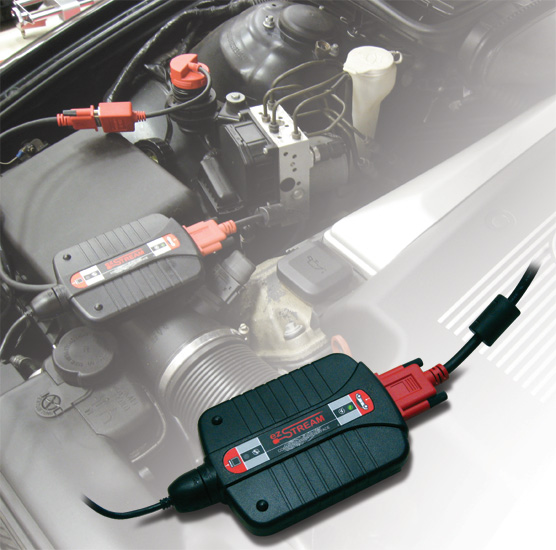

Optional EZ-Stream™*

(EAK0284B10A1) Optional EZ-Stream™* hardware communicates with the vehicle’s computer and aids the technician with service of on-board computer data relative to computerized steering systems.

Back To Features List

---

3D Animation

• Provides vehicle-specific adjustment information with easy-to-understand 3D graphics
• Refers to spare parts or special tools as applicable

Back To Features List

---

Optional Variable-Height Camera Support

• Variable-Height Camera Support (VHCS) (EAA0321J19C) - Shown with standard Camera Beam Assembly
• Eliminates the need tof fixed-position/level surfaces during alignments
• Positions cameras in range with a touch of a button - even during the alignment process!

Back To Features List

---

Universal Wheel Clamps

• Handles wheel diameters ranging 11" to 24" standard (Increase clamping diameter to 28" with Optional Clamp Extensions EAK0268J62A)
• Interchangeable grippers minimize wheel damage

Back To Features List

---

Optional Alloy Quick Clamp Kit

• (EAK0268J63A) Clamp accurately and safely on the tire to avoid scratching the wheel

Back To Features List

---

VODI*™

• Vehicle Orientation Directional Indicator
• Guides technician through measuring process
• Reduces the amount of time spent walking back and forth from the vehicle to the aligner console

Back To Features List

---

Software For Modified Vehicles*

• Minimize tire wear for vehicles with aftermarket wheels or other modifications
• Optimize handling characteristics by comparing the impact of modifications to OEM specifications and making appropriate adjustments

Back To Features List

---

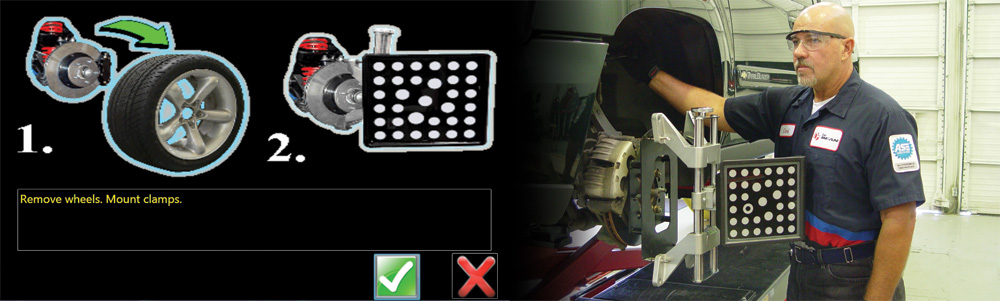

EZ-Access Software*

• Avoid having to work around the wheels when making adjustments
• Access hard-to-reach adjustment points that would be impossible to adjust with the wheels in the way
• Eliminate guess-and-check work - see results of your adjustments while you make them - even with the wheels off
• Perfect for quick and easy installation of aftermarket suspension kits as well as for OEM adjustments
• Reduces strain & fatigue on your technicians

Back To Features List

---

Rolling Radius*

• Identify mismatched tire sizes - a potential cause of vehicle pulling and driver complaints
• Prevent damage to vehicles with all-wheel drive and ABS

Back To Features List

---

Cross-Diagonal Measurements*

• Help diagnose possible collision damage
• Identify frame or structural issues that many shops miss

Back To Features List

---

Ride Height Measurement*

• Review vehicle specs and request input from the technician for those vehicles requiring ride height measurement
• Measure manually or use the Target Imaging Pointer (TIP)

Back To Features List

---

Toe Curve (Bump Steer)

• Measure changes in front toe as suspension height changes, which can affect directional stability

Back To Features List

---

EZ-Toe*

• Adjust front toe quickly
• Steer through full range of motion and maintain toe measurement at all times
• Eliminate redundant steps in front toe adjustments

Back To Features List

---

A-Arm Adjust*

• Achieve precise setting of difficult A-Arm adjustments, without the use of manual calculations or approximation

Back To Features List

---

Features

EZ-Access (Wheels-Off)* Software for Modified Vehicles Advanced Vehicle Dimensions Pro-Ackerman™* Scrub Radius*, Caster Trail*, and SAI Information Systems Compatible TPMS Information Technical Service Bulletins Track Width Wheelbase Front and Rear Set-back Live 3D Modeling* Cradle Adjustments Intuitive Caster Measurement Drag Link Adjustments Single Tie Rod Adjust Toe Curve Change Vehicle Dynamics Roll Forward & Split-Positioning Sequence Rolling Radius* Cross Diagonal* Custom Inspections and Reports Multiple Alignment Wizards (Including Custom) SAI and Thrust Angle Included Angle Toe Out On Turns/Max Turn Front and Rear Toe Front/Rear/All/Zoom Readings FrameCheck™ Light Truck Frame Angle Initial/Final Color Printouts Individual Camber/Caster/Toe Front Caster (-28° to +28°) Front & Rear Camber (-15° to +15°)

3D Animation Video Help A-Arm Adjustments Adjust Camber Only Elevated Adjustments Rear Shim Programs Multiple Lift Support (3) Vehicle Specs: 25+ years EZ-Link™* EZ-Stream™* EZ-Toe™* Steering Wheel Level Check Drive-On Camera Aid Ready Equalize Toe Warning Adjust Front Before Rear Warning Ride Height* Multiple Clamp Support 2-Wheel Alignment 32 Languages Multiple Print Formats Custom Vehicle Specifications Regional Specifications Integrated Help System (PDF) Tools, Parts, and Adjustment Instructions Advanced Customer Database with Backup/Restore Multiple Units of Measure Caster and SAI on Turntables SAI Elevated Live Caster, Camber and Toe - Turntables Live Caster, Camber and Toe - Elevated NorthStar Shim Program Light Truck Bushing Remote Control Variable-Height Camera Support Controls

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Wheel Size	13" - 24"
Tire Diameter	Unlimited
Track Width	48" - 96"
Wheelbase	79" - 180"
Power Requirements	120/230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
00055502000	Steering Wheel Holder
00000096000	Brake Pedal Depressor
EAK0289J23A	Remote Control
EAA0305J48B	Camera Beam Assembly
EAK0268J52A	Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear)

Recommended Accessories

Part Number	Description
EAK0289J06A	Premium Turntables
EAK0277J28A	Paddle Kit for Premium Turntables
EAK0277J39A	4-Post Rollback Kit
EAK0277J40A	12K Scissor Rollback Kit
EAK0277J47A	12K Scissor Roll Forward/Rollback Kit
EAK0277J67A	10K/14K Scissor Rollback Kit
EAK0277J45A	Hunter/Rotary Rollback Kit
EAK0256J71A	Ride Height Target Kit

Optional Accessories

Part Number	Description
8-05320A	Frame Angle Gauge
EAK0268J62A	Universal Wheel Clamp Extension Kit (to 28")
EAK0268J63A	Alloy Quick Clamp Kit
EAK0268J08A	Remote Display Readout with 30’ Cable
EAK0289J35A	Convex Mirror Kit
EAK0289J91A	Drive-On Camera Aid
EAK0289J86A	VIN Code Reader
EAK0284B10A1	EZ-Stream™*
EAK0222J83A	Hub Adapter Kit (Wheel-Off Alignment)

Optional Camera Support Configurations

Part Number	Description
EAA0321J19C	Variable-Height Camera Support
EAA0321J01A	Fixed-Height Camera Support
EAK0289J36A	Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror)
EAK0289J63A	Wall/Pit Camera Support (8")
EAK0289J64A	Electronic-Tilt Camera System
