Visualiner 3D-EL

Utilizing patented imaging technology, the V3D-EL provides accurate, real-time measurements - reducing setup and measurement times while generating serious productivity benefits. Matched with easy-to-use software, the John Bean V3D-EL wheel aligner will have your technicians getting readings in a matter of minutes. (Shown with Optional Variable-Height Camera Support)

The V3D-EL will enable you to:

• Work at any height, eliminating the need to crawl under the vehicle to perform adjustments*
• Generate more alignment business
• Eliminate comebacks
• Make More Money!

* Requires Optional Variable-Height Camera Support (VHCS).



Click on one of the section titles to learn more about the V3D-EL Wheel Alignment System.

---

EZ-Link™* Steering Angle Sensor (SAS) Reset

EZ-Link™ software alerts the technician of OEM service and maintenance procedures related to Electronic Stability Control and Electric Power Steering systems.

OEM instructions guide the technician through the process of resetting the steering angle sensors along with other sensors as required. EZ-Link™ includes manual as well as electronic resets.

Back To Features List

---

3D Animation

• Provides vehicle-specific adjustment information with easy-to-understand 3D graphics
• Refers to spare parts or special tools as applicable

Back To Features List

---

Optional Variable-Height Camera Support

• Variable-Height Camera Support (VHCS) (EAA0321J19C) - Shown with standard Camera Beam Assembly
• Eliminates the need tof fixed-position/level surfaces during alignments
• Positions cameras in range with a touch of a button - even during the alignment process!

Back To Features List

---

Universal Wheel Clamps

• Handles wheel diameters ranging 13" to 24" standard (Increase clamping diameter to 28" with Optional Clamp Extensions EAK0268J62A)
• Interchangeable grippers minimize wheel damage

Back To Features List

---

Optional Alloy Quick Clamp Kit

• (EAK0268J63A) Clamp accurately and safely on the tire to avoid scratching the wheel

Back To Features List

---

VODI*™

• Vehicle Orientation Directional Indicator
• Guides technician through measuring process
• Reduces the amount of time spent walking back and forth from the vehicle to the aligner console

Back To Features List

---

Ride Height Measurement*

• Review vehicle specs and request input from the technician for those vehicles requiring ride height measurement

Back To Features List

---

Features

SAI and Thrust Angle Included Angle Toe Out On Turns/Max Turn Front and Rear Toe Front/Rear/All/Zoom Readings FrameCheck™ Light Truck Frame Angle Initial/Final Color Printouts Individual Camber/Caster/Toe Front Caster (-28° to +28°) Front & Rear Camber (-15° to +15°) 3D Animation Video Help A-Arm Adjustments Adjust Camber Only Elevated Adjustments Rear Shim Programs Multiple Lift Support (3) Vehicle Specs: 25+ years EZ-Link™* EZ-Toe™* Live Caster, Camber and Toe - Turntables Live Caster, Camber and Toe - Elevated

Equalize Toe Warning Adjust Front Before Rear Warning Ride Height* Multiple Clamp Support 2-Wheel Alignment 32 Languages Multiple Print Formats Custom Vehicle Specifications Regional Specifications Integrated Help System (PDF) Tools, Parts, and Adjustment Instructions Advanced Customer Database with Backup/Restore Multiple Units of Measure Caster and SAI on Turntables SAI Elevated NorthStar Shim Program Light Truck Bushing Remote Control (Optional) Variable-Height Camera Support Controls

---

Back To Features List | Back To Top | *Patented and/or Patent-Pending Features

Wheel Size	13" - 24"
Tire Diameter	Unlimited
Track Width	48" - 96"
Wheelbase	79" - 180"
Power Requirements	120/230V, 1Ph, 60HZ

Standard Accessories

Part Number	Description
00055502000	Steering Wheel Holder
00000096000	Brake Pedal Depressor

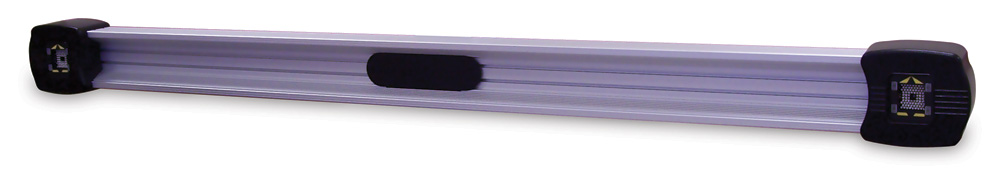

EAA0305J48B	Camera Beam Assembly
EAK0268J52A	Universal Wheel Clamps (13" - 24", Set of 4) and Shatter-proof Imaging Targets (2 Front and 2 Rear)

Recommended Accessories

Part Number	Description
EAK0289J06A	Premium Turntables
EAK0277J28A	Paddle Kit for Premium Turntables
EAK0277J39A	4-Post Rollback Kit
EAK0277J40A	12K Scissor Rollback Kit
EAK0277J47A	12K Scissor Roll Forward/Rollback Kit
EAK0277J67A	10K/14K Scissor Rollback Kit
EAK0277J45A	Hunter/Rotary Rollback Kit

Optional Accessories

Part Number	Description
8-05320A	Frame Angle Gauge
EAK0268J62A	Universal Wheel Clamp Extension Kit (to 28")
EAK0268J63A	Alloy Quick Clamp Kit
EAK0268J08A	Remote Display Readout with 30’ Cable

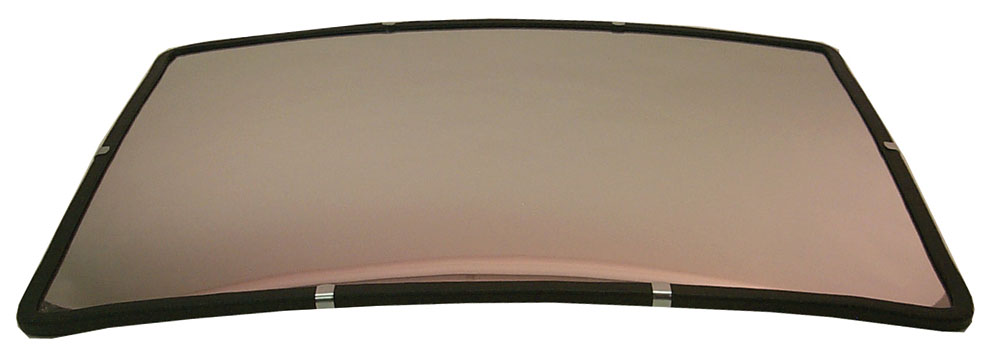

EAK0289J35A	Convex Mirror Kit
EAK0289J71A	Universal Wheel Clamp Floor Stand

Optional Camera Support Configurations

Part Number	Description
EAA0321J19C	Variable-Height Camera Support
EAA0321J01A	Fixed-Height Camera Support
EAK0289J79A	FHCSE/ETCS Kit. Includes: Fixed-Height Camera Support Extended (FHCSE), Electronic-Tilt Camera System (ETCS), Universal Wheel Clamp Storage Brackets, Floor Anchoring Brackets, and Mounting Hardware
EAK0289J36A	Wall/Pit Camera Support (Adjustable 36" - 60". Includes Convex Mirror)
EAK0289J63A	Wall/Pit Camera Support (8")
EAK0289J64A	Electronic-Tilt Camera System
