Product Overview
44212OQ/44212OQE/EELR507A
Heavy-duty 4-post open front alignment lifts range from 12,000 to 14,000 lb. capacities. John Bean’s 4-Post alignment lifts represent the latest in dependability by delivering a flat and straight runway everytime, and also provide the best safety system in the industry.
Important Safety Notices
Click on one of the section titles to learn more about the 4-Post Open Front Alignment Lift.
Features
- Easily handles any vehicle from cars to light/medium size commercial vehicles
- Three-tier safety system leverages hydraulic velocity fuses, single-point air-operated safety locks, and mechanical redundant safety locks
- Alignment level at multiple heights
- Cutouts for optional turnplates
- Additional port for customer-supplied quick disconnect allows for an easy and convenient air tool connection point
- ALI/ETL/CSA certified
Specifications
| 44212OQ | 44212OQE | EELR507A | |
|---|---|---|---|
| Lifting Capacity | 12,000 lbs | 12,000 lbs | 14,000 lbs |
| Overall Width | 148" | 148" | 140" |
| Overall Length | 266" | 304" | 269" |
| Width Between Runways | 36" | 36" | 40" |
| 4-Wheel Alignment Wheelbase | 144" | 144" | 70" - 158" |
| 2-Wheel Alignment Wheelbase | 172" | 210" | 188" |
| Runway Width | 24" | 24" | 22" |
| Maximum Raised Height | 71" | 71" | 74" |
| Maximum Lowered Height | 10" | 10" | 7" |
| Lifting Time | 60 seconds | 60 seconds | 70 seconds |
| Shipping Weight | 4,913 lbs | 5,690 lbs | 4,850 lbs |
| Power Requirements | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ | 230V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| JBC21600000 | Roller Jack (6,000 lbs. Lifting Capacity, standard with 44212OQ and 44212OQE only. Set of 2) |

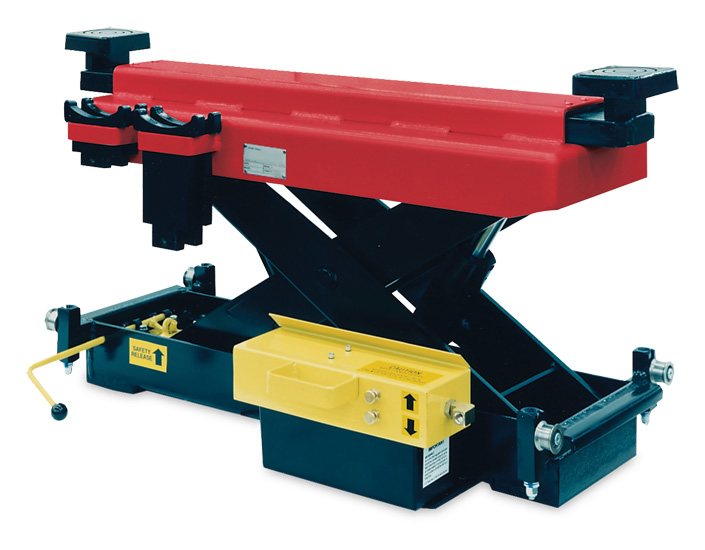

| JBC20700000 | Roller Jack (7,000 lbs. Lifting Capacity, standard with 44214Q and 44214QE only. Set of 2) |
Optional Accessories
| Part Number | Description |
|---|---|
| JBC20600000 | Roller Jack (6,000 lbs. Lifting Capacity, use with 44212OQ and 44212OQE only) |
| JBC14500000 | Roller Jack (4,500 lbs. Lifting Capacity) |

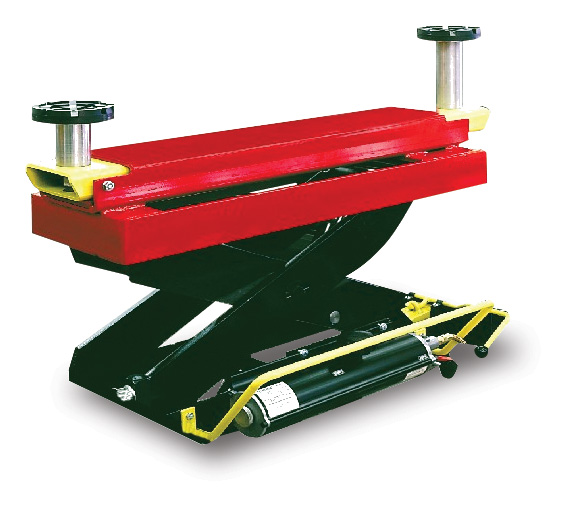

| JBC217 | Roller Jack (7,000 lbs. Lifting Capacity, use with 44214Q and 44214QE only) |
| JBC054 | Stainless Steel Turntables (Dimensions (LxWxH): 14.75" x 14.75" x 1.37") |
| EAK0289J06A | Premium Turntables (Dimensions (LxWxH): 18.5" x 19.7" x 2") |
| EAK0277J57A | Dust Cover for Premium Turntables |
| EAK0277J28A | Paddle Kit for Premium Turntables |
| EAK0277J39A | 4-Post Roll-back Kit |
| JBC01200000 | Sliding Waste Oil Collection Tank (26 gallon) |
| JBC0100 | Tsunami Kit (Water Separator/Regulator/Lubricator Kit) |
